Vision | Hard Shell Dachzelt
Vision | Hard Shell Dachzelt
Gear up for the open road with $150 off eligible rooftop tents. (No code needed)
For local pickup options, please review our pickup details. (Self Pickup Discount)
26 auf Lager
Verfügbarkeit für Abholungen konnte nicht geladen werden
Auftragsabwicklung
Auftragsabwicklung
Versand
Leistungen bei Selbstabholung
- Hilfe beim Verladen der verpackten Zelte in die Fahrzeuge der Kunden.
- Auspacken und Heben von Zelten auf Fahrzeugdächer.
Verfolgen Sie die Bestellung
Sobald Ihre Bestellung versandt wird, teilen wir Ihnen die Sendungsverfolgungsnummer mit. Dies dauert normalerweise etwa zwei Werktage.
Bitte beachten Sie, dass aufgrund der bevorstehenden Weihnachtsfeiertage eine erhöhte Nachfrage nach Versand besteht und sich die Lieferzeiten verzögern können.
Transportschäden
Jedes Zelt ist während des Versands versichert. Sollten Sie bei der Lieferung Schäden feststellen, kontaktieren Sie uns bitte umgehend unter support@topoakoverland.com – wir kümmern uns um die Behebung.
Finden Sie unsere Händler
Wir haben derzeit nur in Dubai einen Offline-Händler. Weitere Informationen finden Sie unter „Händlersuche“ .
Zurückkehren
Alle Artikel können innerhalb von 30 Tagen nach Erhalt zurückgegeben werden. Bevor Sie eine Rückgabe oder einen Umtausch beantragen, kontaktieren Sie uns bitte zuerst.
Sorgenfrei-Garantie
Sorgenfrei-Garantie
3 Jahre eingeschränkte Garantie
- Gehäuse aus Aluminiumlegierung
- Dachträger
- Stoff
Ausführlichere Informationen finden Sie in der Garantie
Sollten Sie bei der Nutzung unserer Produkte auf Probleme stoßen, kontaktieren Sie uns bitte unter support@topoakoverland.com. Wir bieten Ihnen Garantieleistungen und beantworten Ihre Anfrage innerhalb von 24 Stunden!
Produktbeschreibung
Produktbeschreibung

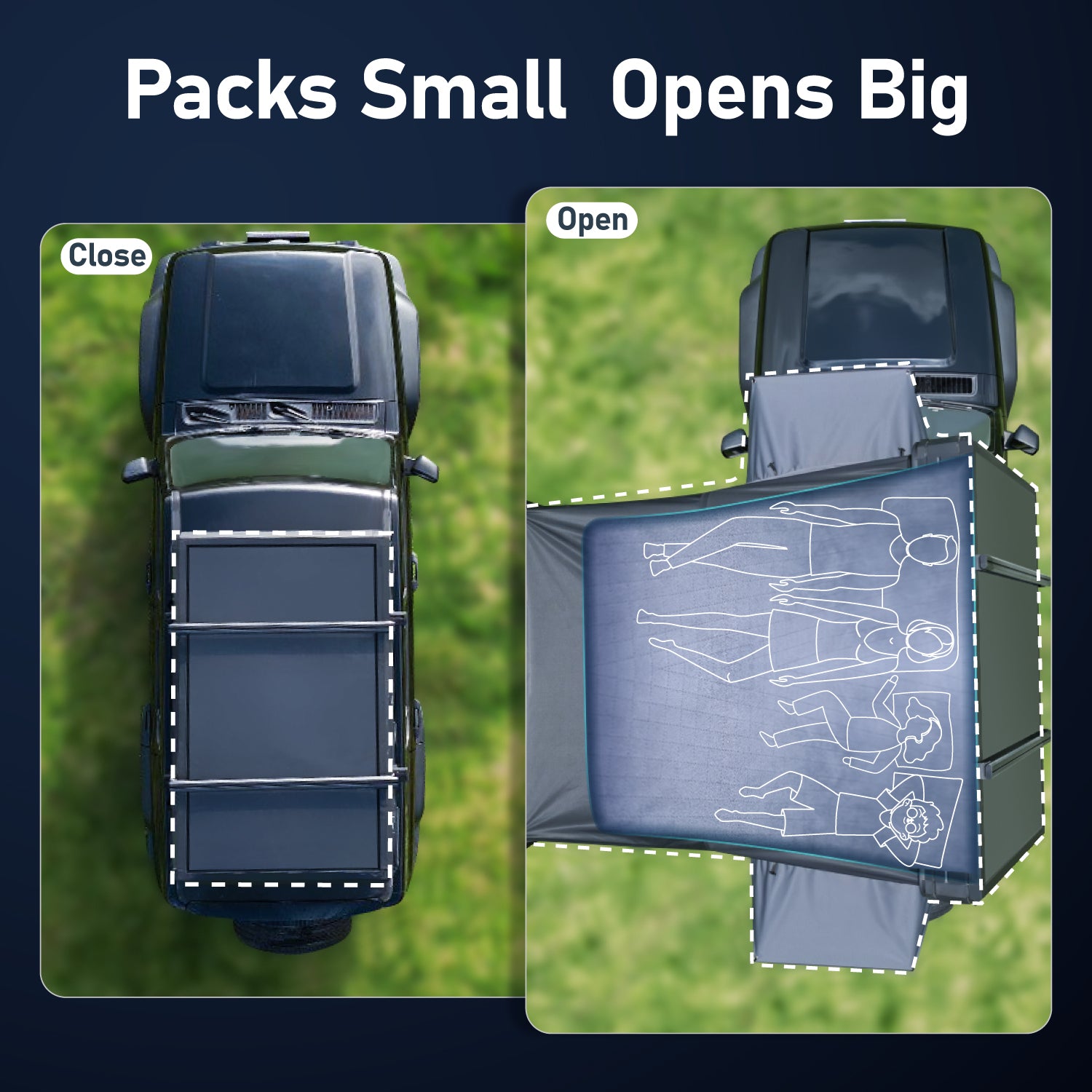

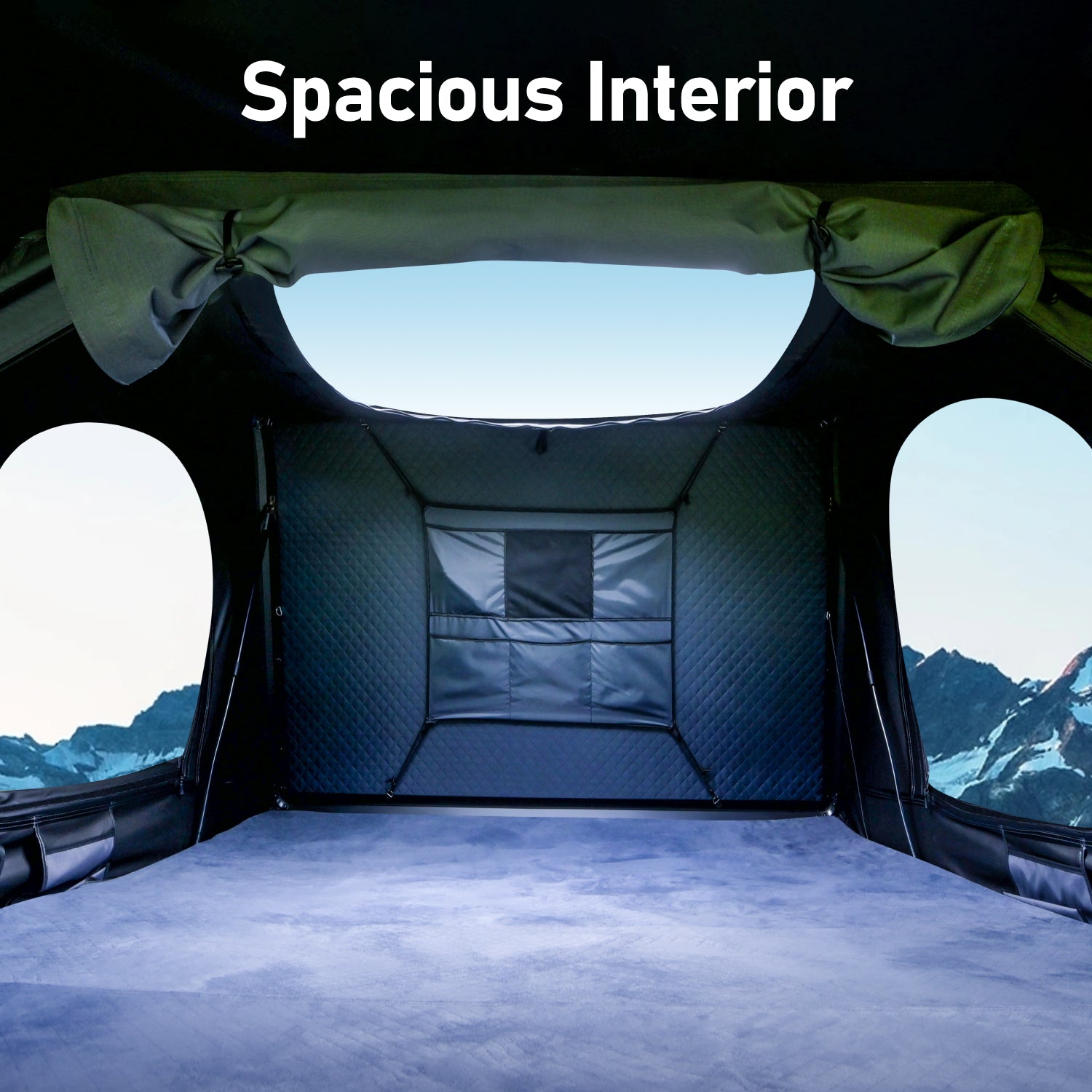

1. Kompaktes und dennoch geräumiges Design
Erweitert sich beim Öffnen zu einem großen, komfortablen Raum.
Lässt sich auf eine kompakte Größe zusammenfalten und ist daher mit den meisten Fahrzeugen kompatibel, einschließlich Stadt-SUVs.

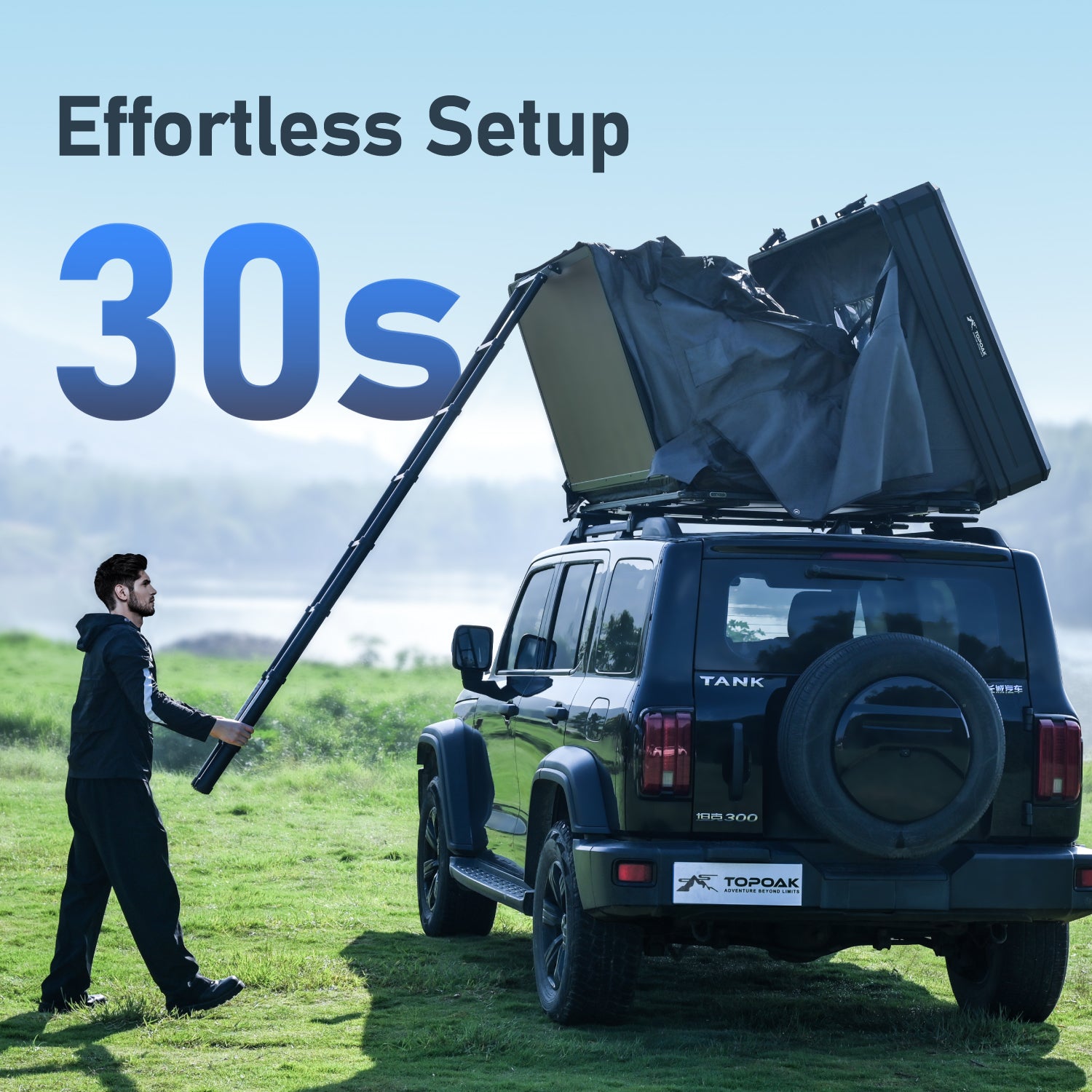

2. Mühelose Einrichtung in 30 Sekunden
Der Auf- und Abbau dauert nur 30 Sekunden, sodass Ihr Abenteuer stressfrei verläuft.

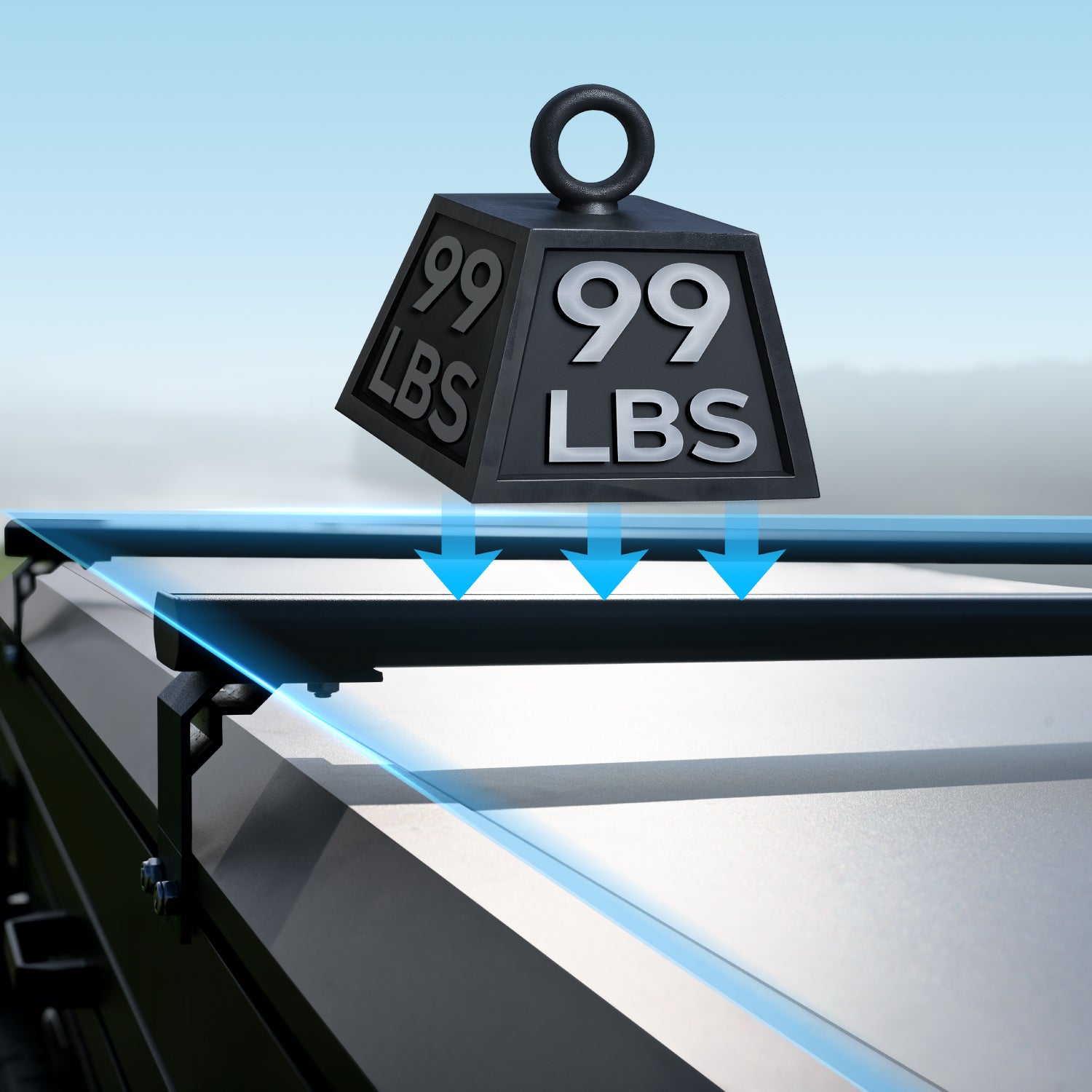

3. Dachträger
Maximieren Sie Ihre Abenteuerkapazität mit langlebigen Dachträgern.
Befestigen Sie zusätzliche Ausrüstung wie Fahrräder, Kajaks oder Fracht sicher.

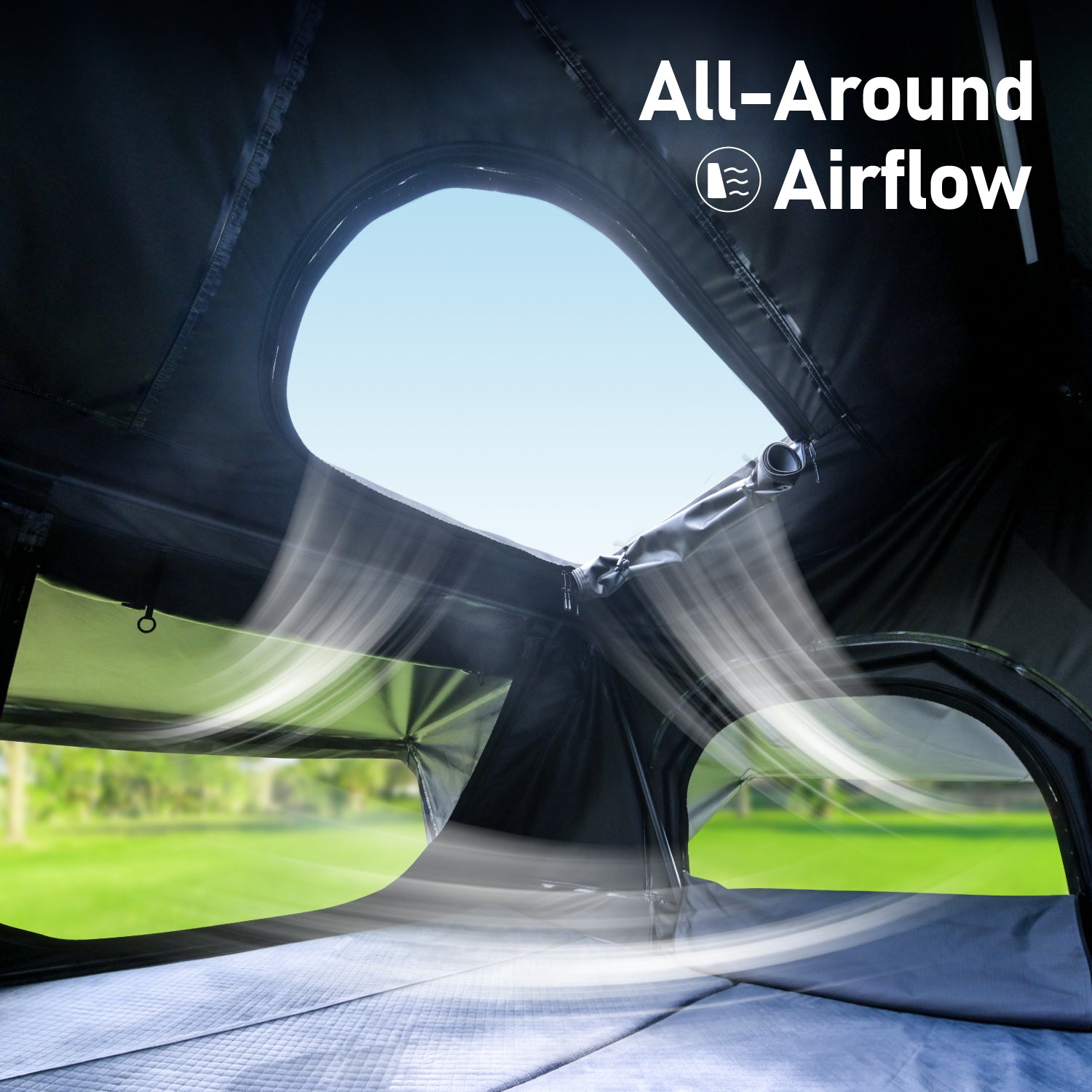

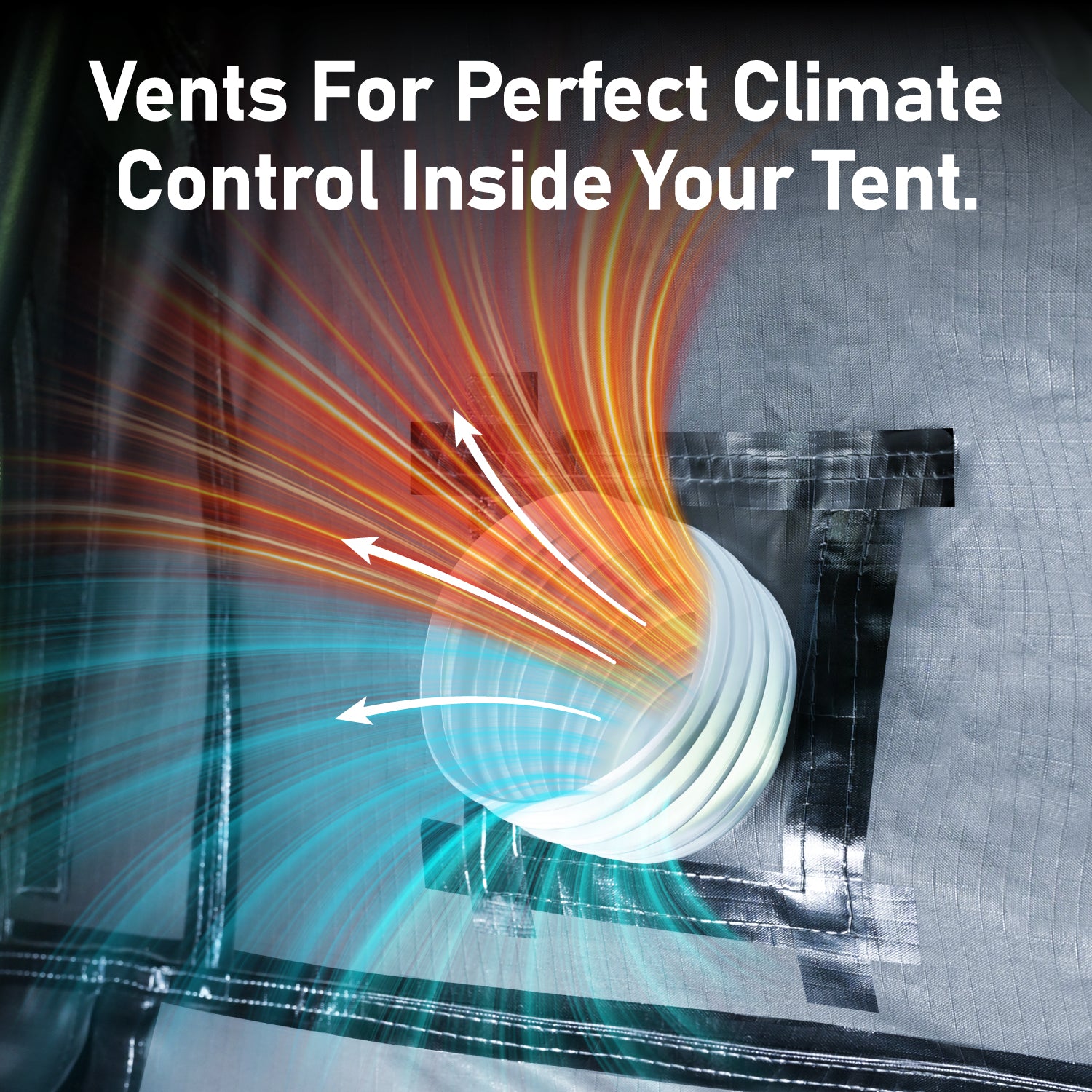

4. Belüftung
Hält das Zeltinnere frisch und atmungsaktiv.
Reduziert Kondensation und sorgt für eine trockene und angenehme Umgebung.

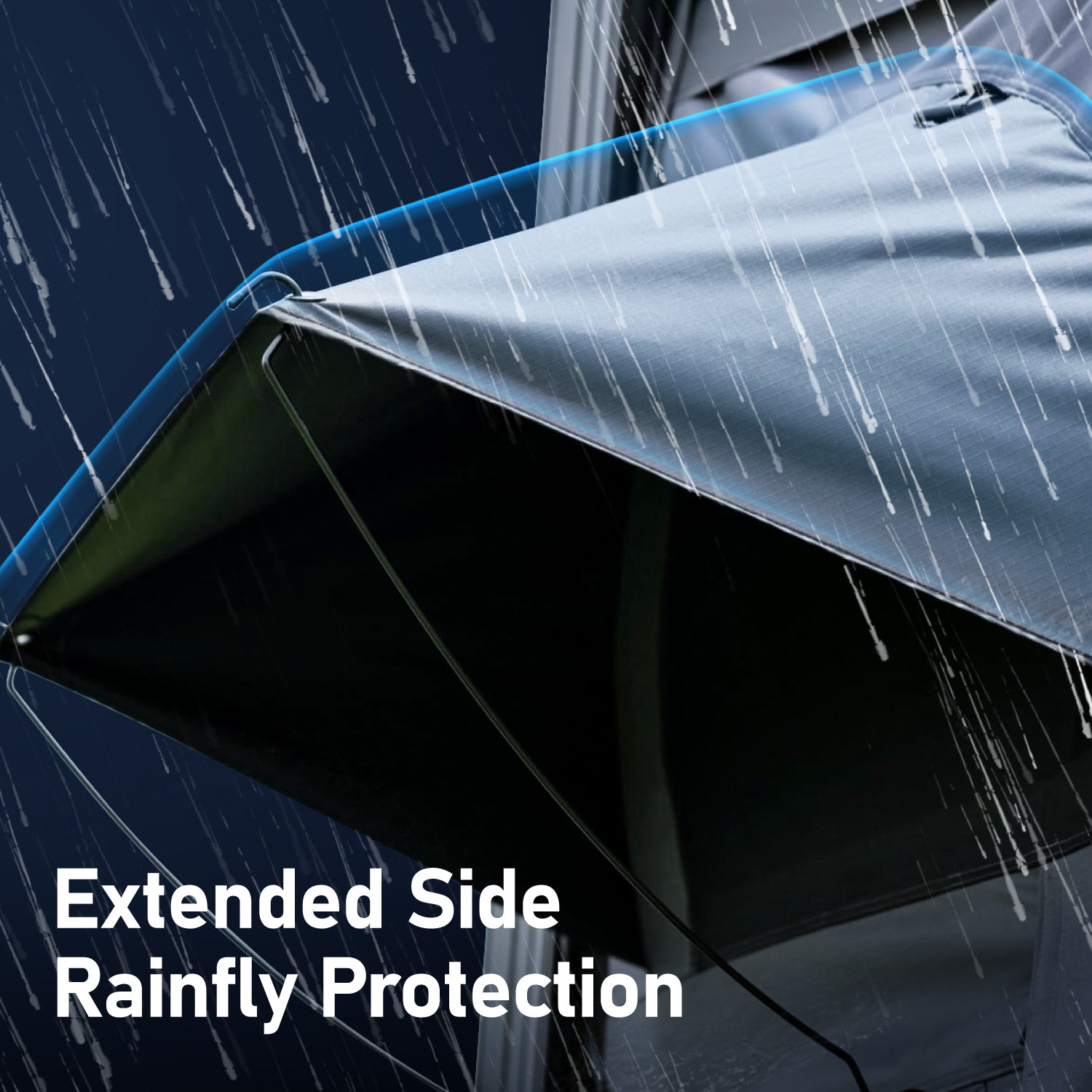

5. Seitliches Regenverdeck
Vollständig verstellbares Design – kann geöffnet oder verstaut werden.
Bleiben Sie im Regen trocken, ohne die Fenster zu schließen.
Genießen Sie an klaren Tagen eine ungehinderte Aussicht.
6. Anderson-Anschluss und Heizungsöffnung
Integrierter Anderson-Anschluss für nahtlose Stromverbindung.
Integrierter Heizlüfter für zusätzliche Wärme in kalten Nächten.

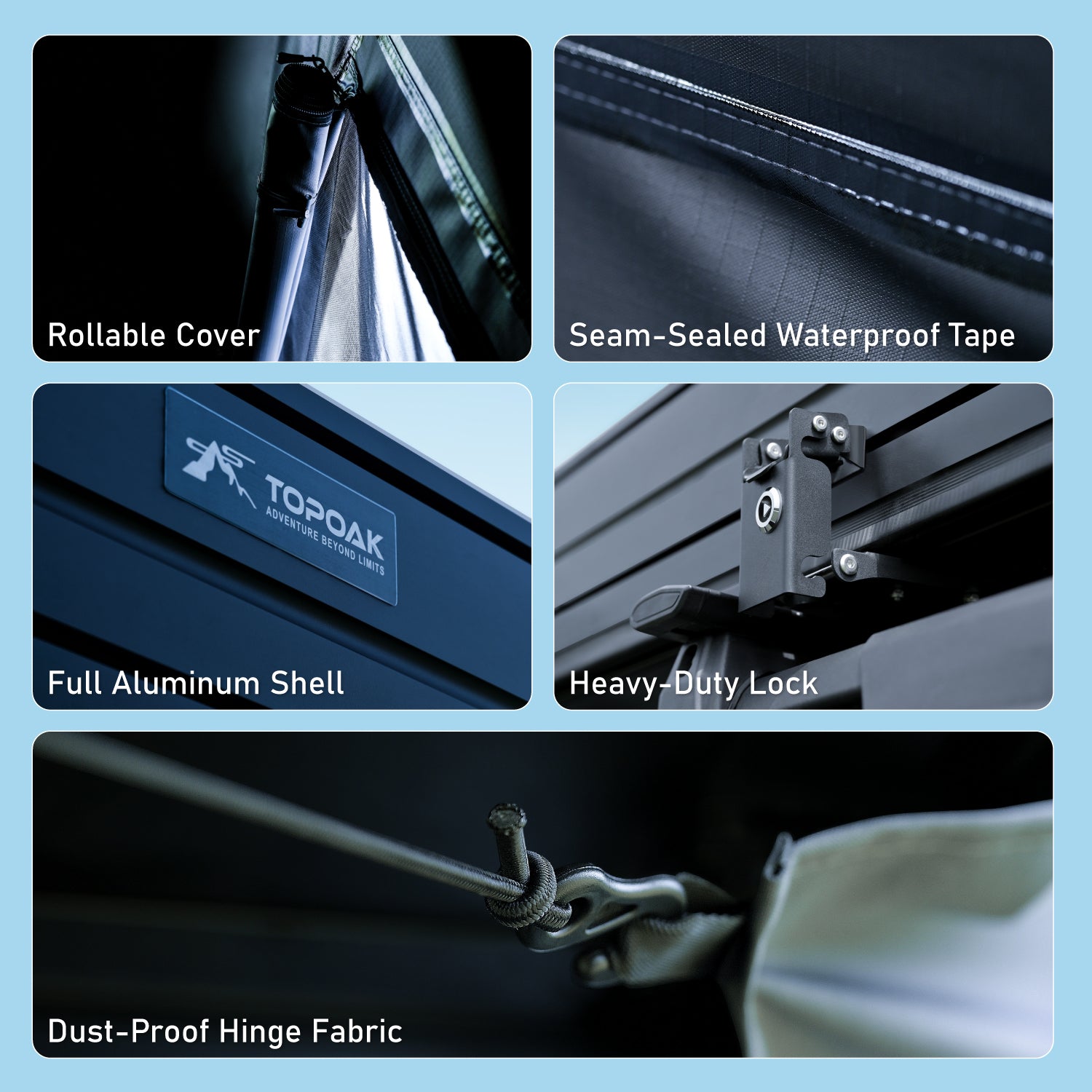

7. Verbessertes Gewebe für ultimativen Schutz
300 g/m² starkes Verdunkelungstuch aus Poly-Baumwolle mit Antikondensationsbeschichtung.
Wasserdichtes 300D Ripstop-Polyester mit Verdunkelungsbeschichtung.
Bietet außergewöhnliche Atmungsaktivität und erreicht gleichzeitig eine Wasserdichtigkeit von 8.000 mm – bereit für extreme Wetterbedingungen.
8. Premium 1 ³⁄₅" Matratze
Luxuriöser, samtiger Bettbezug für ein weiches und gemütliches Gefühl.
Dreilagige Matratze für ultimativen Komfort:

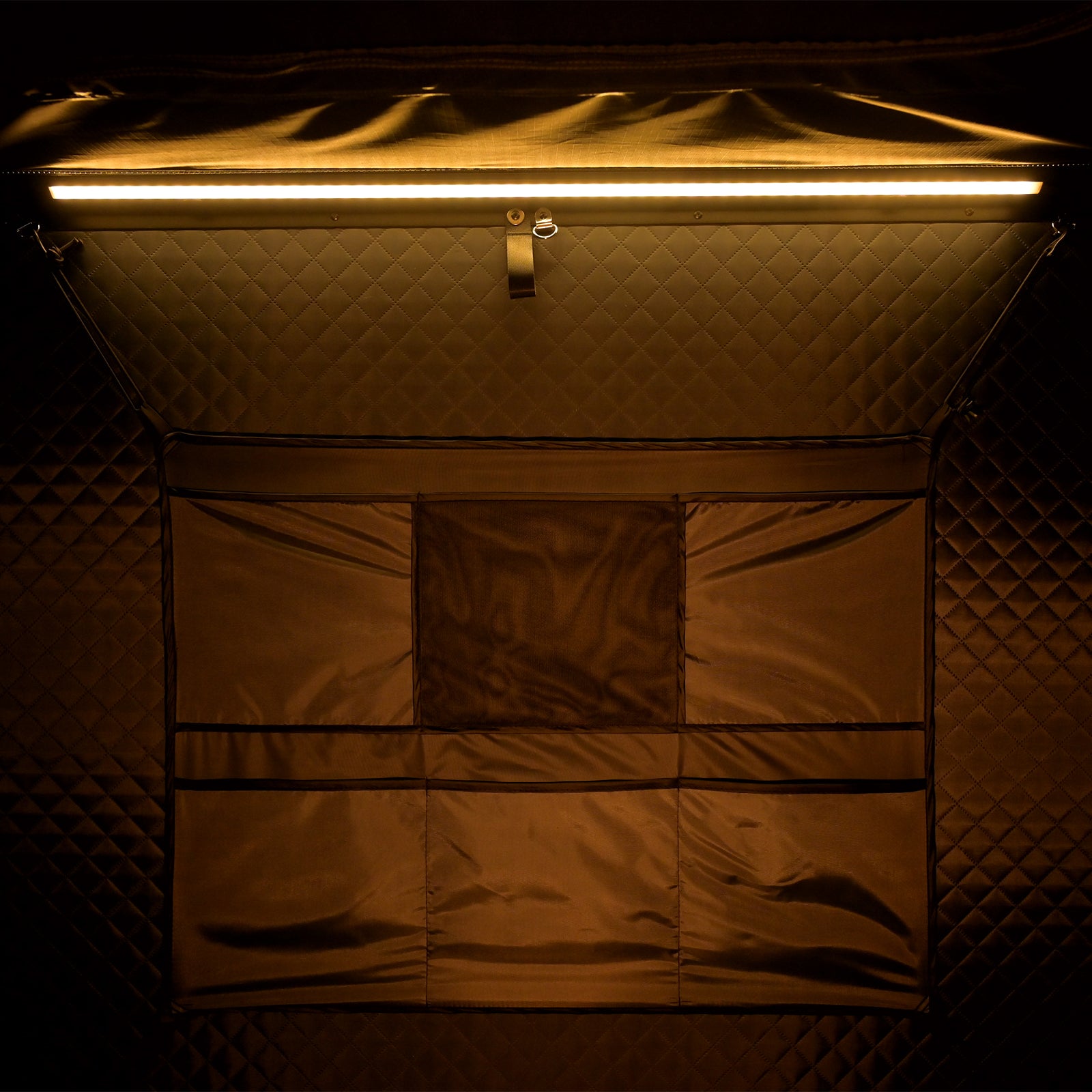

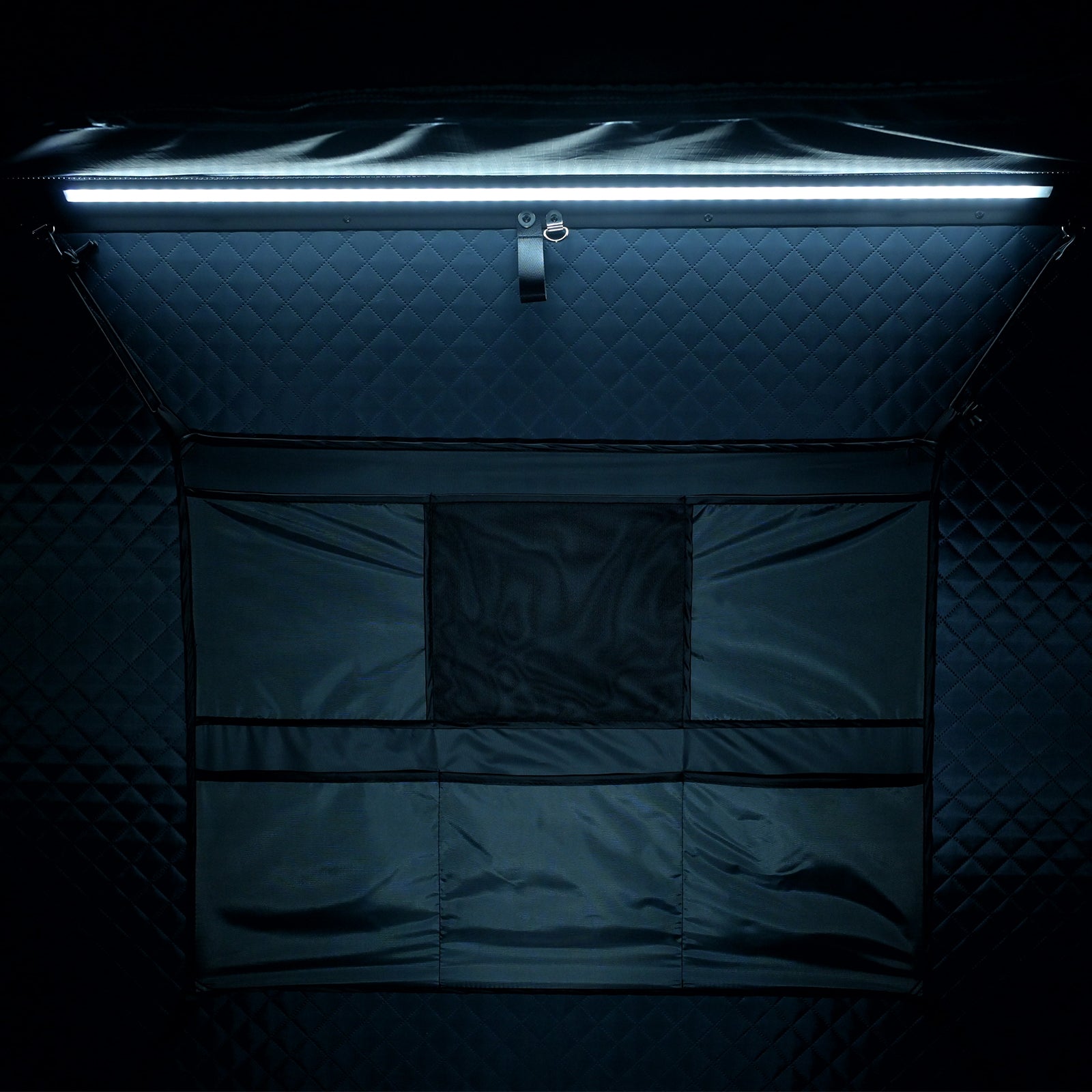

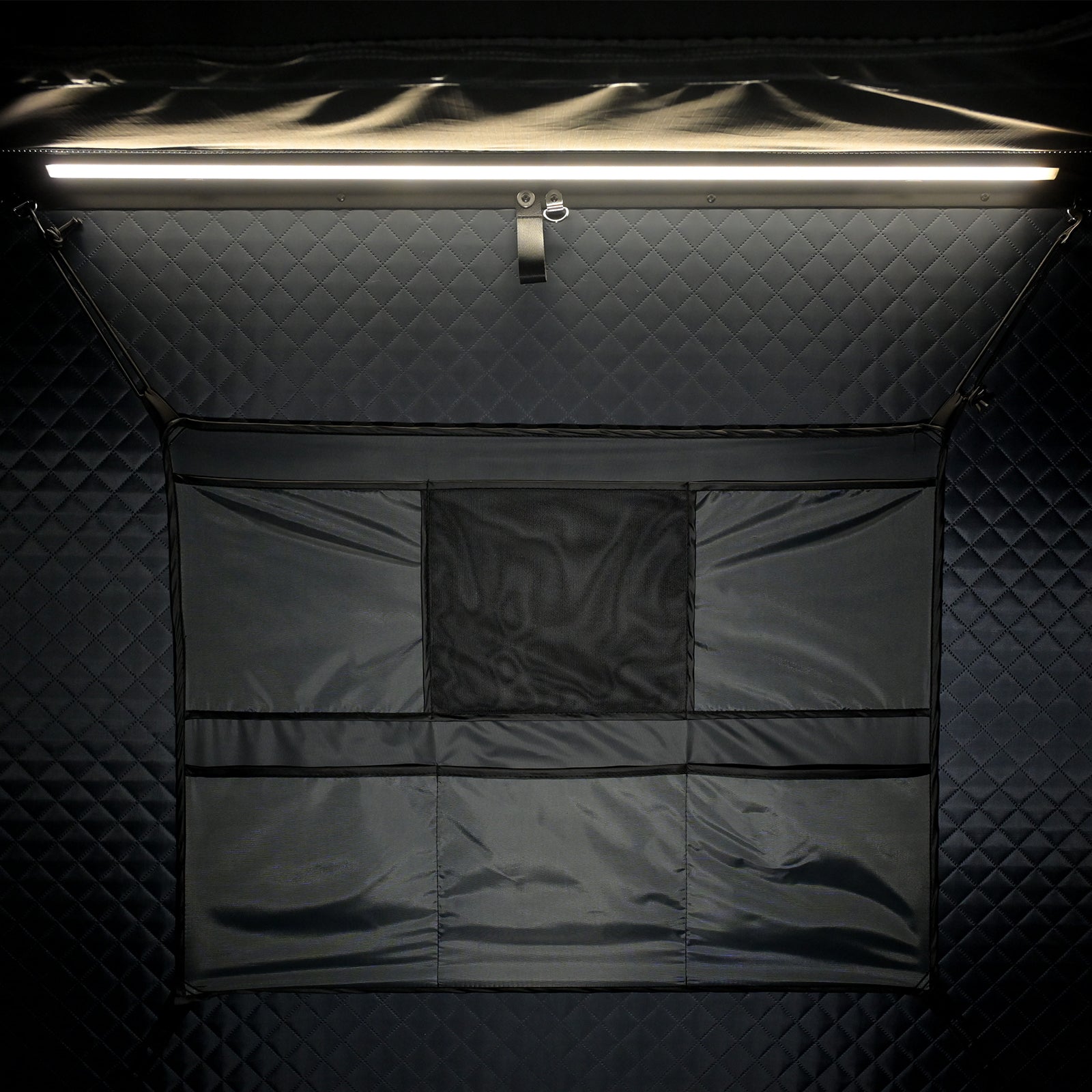

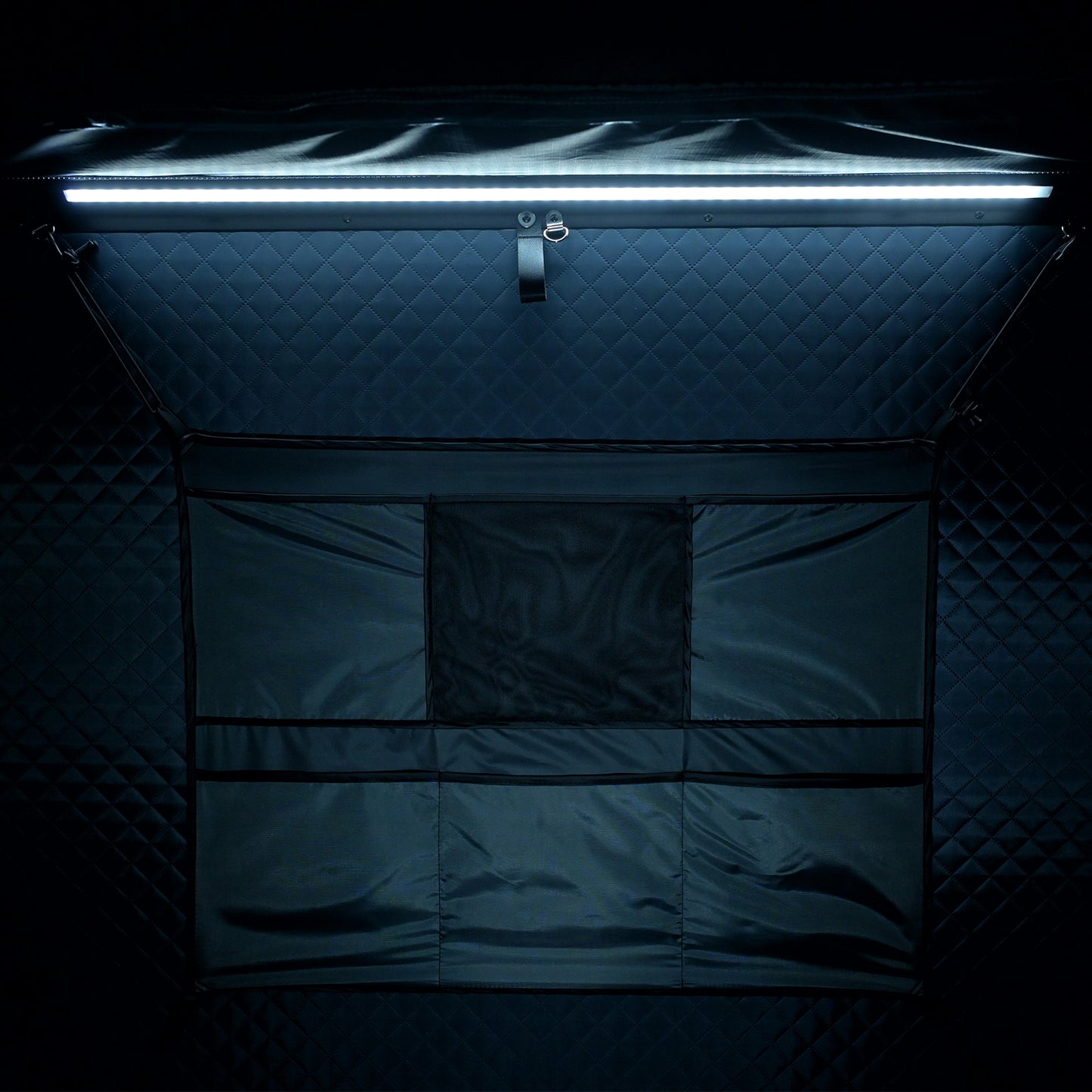

9. LED-Beleuchtungssystem
Einstellbare Helligkeit entsprechend Ihren Bedürfnissen.
Drei Farboptionen: Weiß, Warmweiß und Gelb.
Bequeme Fernbedienungsbedienung.
10. Oberlichtdesign
Erleben Sie atemberaubende Sternennächte durch das eingebaute Dachfenster.
Genießen Sie tagsüber den Panoramablick und holen Sie sich die Natur direkt in Ihr Zelt.
Mit dem hochauflösenden TPU-Regenschutz bleiben Sie gemütlich und trocken, während Sie dem beruhigenden Klang der Regentropfen lauschen.

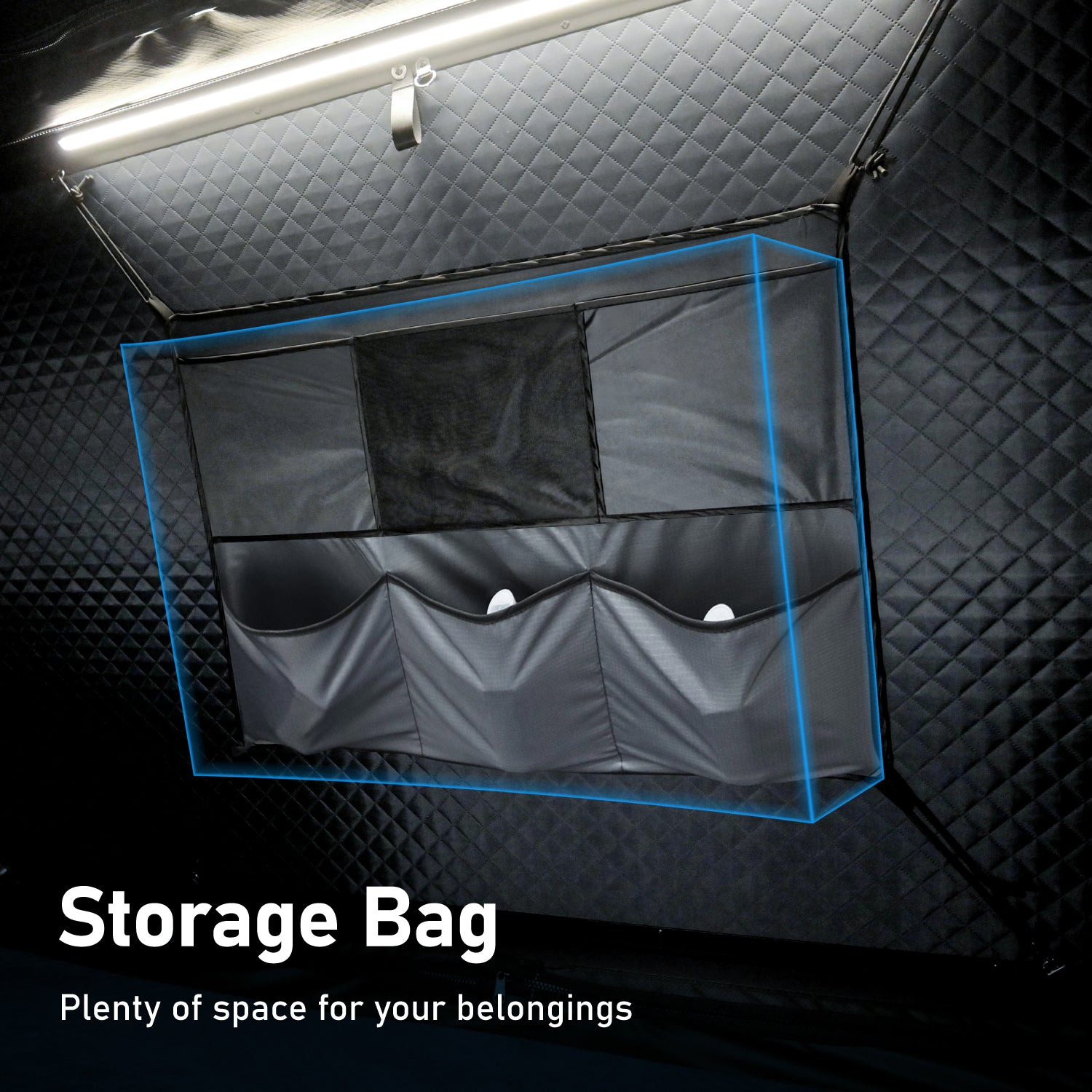

11. Viel Stauraum
Großzügiger Stauraum im Inneren, um alle wichtigen Dinge organisiert aufzubewahren.
Mehrere Fächer gewährleisten einen einfachen Zugriff auf Ausrüstung und persönliche Gegenstände.
SET UP
Aktie

Neu überarbeitet
Verlässliche Power für jedes Abenteuer
Autark heißt nicht verzichten.
Dank des integrierten Anderson-SB50-Steckers betreibst du eine Kühlbox, sorgst für Licht, bleibst warm mit einer Heizdecke, lädst deine Geräte – und verwandelst dein Camp in ein echtes Zuhause in der Wildnis.
Keine Umwege. Keine Kompromisse. Nur saubere, zuverlässige Energie – jederzeit einsatzbereit.
Hinweis: Stromkabel nicht enthalten. SB50-Stecker empfohlen; 10–14 AWG Kabel, 20–50A.
Integrierter Heizanschluss – Wärme, wo immer Sie sind
Nächte unter null? Her damit.
Mit dem integrierten Heizanschluss kannst du ganz einfach eine mobile Heizung anschließen und dein Dachzelt in ein warmes, windgeschütztes Refugium verwandeln – selbst wenn draußen alles gefroren ist.
Fahr nicht nach Hause, nur weil es kalt ist. Bleib draußen. Bleib warm. Bleib unaufhaltbar.
Verdunkelungsstoff – Dunkelheit auf Abruf
Wachen Sie nach Ihrem eigenen Zeitplan auf – nicht nach der Sonne.
Unser verbesserter Verdunkelungsstoff hält Sonnenlicht, Blendung und Hitze zuverlässig fern und verwandelt Ihr Dachzelt zu jeder Tageszeit in eine ruhige, dunkle Oase.
Denn echter Ruhe sind die Tageslichtstunden egal.
Stabilus® Gasdruckfedern – mühelose Kraft
Öffnen Sie Ihr Dachzelt mit Vertrauen – angetrieben von Stabilus® Gasdruckfedern, die in den härtesten Maschinen der Welt bewährt sind.
Sanft. Stark. Für eine lebenslange, robuste Nutzung unter allen Bedingungen gebaut.
Lebenslange Garantie inklusive – denn das Abenteuer hört niemals auf.

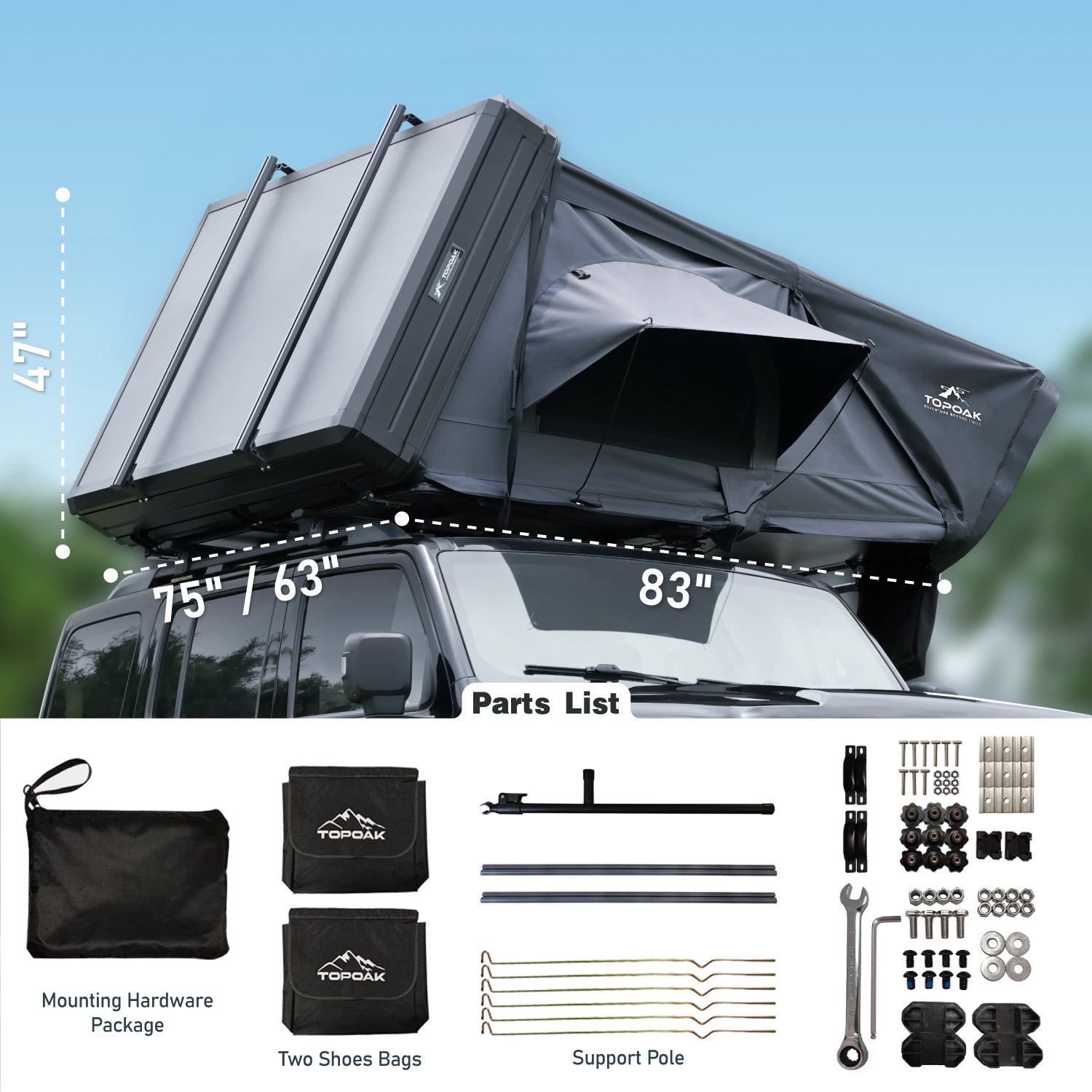

DIMENSIONS
| Dimensions | Details |
|---|---|
| Open | 63" × 83" × 47" (63") 75" × 83" × 47" (75") |

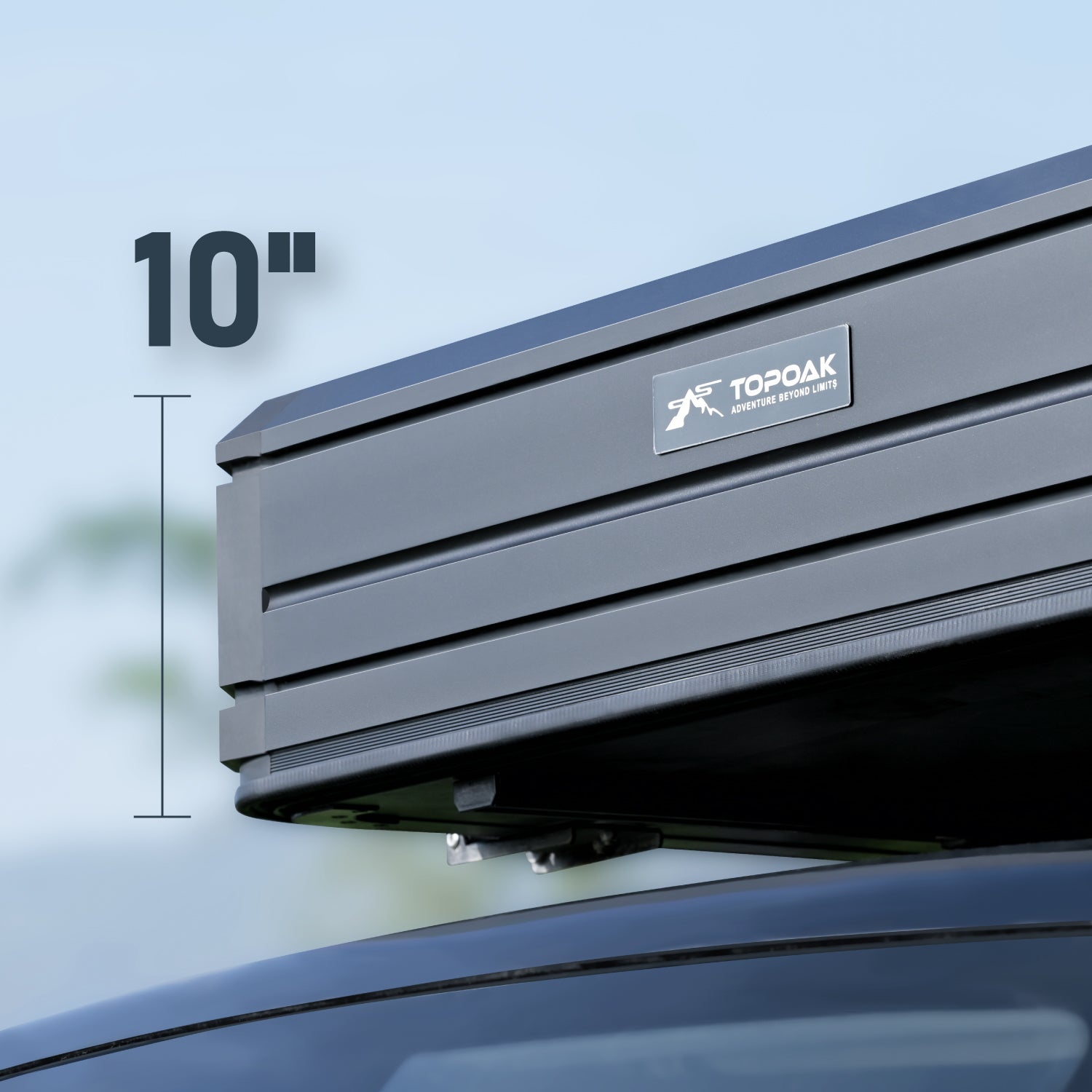

| Closed | 63" × 46" × 10" (63") 75" × 46" × 10" (75") |
| Package | 68" × 57" × 14" (63") 80" × 57" × 14" (75") |
| Mattress | 58" × 78" × 1 ³⁄₅" (63") 70" × 78“ × 1 ³⁄₅" (75") |
| Sleeping Capacity | 63" (Fits two adults) 75" (Fits three adults and one child) |
| Net Weight | 172 lbs/ 78kg (63") 176 lbs/ 80kg (75") |
| Package Weight | 308 lbs/ 140kg (63") 322 lbs/ 146kg (75") |
| Crossbar Spacing Range | 25" - 45" (63") 30" - 56" (75") |
| Maximum Extension Length (Ladder) | 7'6" |
SPECIFICATIONS
| Specification | Details |
|---|---|
| Floor | Durable, insulating honeycomb aluminum panels |
| Hard Shell Case | Durable Aluminium alloy |
| Tent Fabric | 300gsm poly-cotton blackout canvas w/ anti-condensation coating |
| Rainfly Fabric | 180gsm waterproof polyester ripstop w/ blackout coating |
| Waterproof Rating | 8000 mm, suitable for heavy rain conditions |
| Mattress | High-density foam |
| Seasons | 4 Season |
| Lighting Power | DC 5V USB |
FAQ
How can I contact you guys?
For any inquiries or support, please feel free to reach out to us:
LOGISTICS SUPPORT: Logistics@topoakoverland.com
PRODUCT & SERVICE SUPPORT: support@topoakoverland.com
Email Support Hours:Monday to Friday (Responses within 24 hours)
Live Chat Support:Available from 7:00 PM to 12:00 Midnight (EST)
Simply click the chat icon at the bottom right corner of your screen for instant assistance.We're here to help and ensure you have the best experience possible!
How long will it take to receive the product after I place an order?
Ships within 48 hours on business days, estimated take about 5-12 days in delivery. For more details, please refer to our shipping policy.
Can I pick up the product by myself? Will it be cheaper this way?
Sure! Our warehouse is based in Eastvale, CA. Please select Pick Up when you check out and contact us. We'll send you a bill of lading to you for pick up. You can save $299 shipping if you pick up the product yourself.
Will there be better deals in the future?
We offer a 30-day price guarantee. If you find a lower price within 30 days of your purchase, please feel free to contact us, and we will refund the difference.
My car roof has a weight limit of 150 lbs. How can I install your tent?
The roof load capacity of most vehicles is typically 150 lbs. To safely support our tent, please install a crossbar to increase the weight capacity. This will ensure the tent is properly supported. For more information on the types of crossbars required for different vehicles, please refer to our RTT Crossbars Guide.
When the tent is closed, can I leave my sleeping bag/ pillow/ blanket inside?
Galaxy/Stellar:Once you remove the ladder, you'll have 2.76" (7cm) of space for storage. If you need more room, just take out the mattress, and you'll have up to 4.72" (12cm) of storage space.
Vision:The tent can accommodate pillows and blankets as long as they are no thicker than 0.4 inches (1 cm).
Nebula:We’re very sorry, but the interior of the Nebula tent does not have much space, and unfortunately, even a ladder wouldn't fit inside. One of the key features of the Nebula is its lightweight design, which does limit the interior space.
INSTALLATION
Important Installation Safety Notice

1. Crossbar Thickness: Each tent includes a Standard Mounting Kit (1"–2"). If your bars are outside this range, use:
· Thick & Wide Kit — fits crossbars 2"-2.8"
2. Crossbar Width: Each tent includes a Standard Mounting Kit (2.4"–3.5"). If your bars are outside this range, use:
· Wide Kit — fits crossbars 3.5"–4.6"
· Round/Rectangle Kit — round bars 1"–1.7" or rectangle bars 1"–1.4"
Thick & Wide/ Wide/ Round/ Rectangle kits are not included by default. If needed, please contact our support team.
3. Crossbar Spacing: The distance between the crossbars must be between 25"- 45"for the L model, and between 30"- 56" for the XL model.
4. Dynamic Weight Capacity: Roof rack system must have a dynamic load rating of ≥172 lbs (78 kg) for the L model or ≥176 lbs (80 kg) for the XL model.
Dynamic load rating applies while driving, static load capacity is usually 5–7× greater. The Vision weights :L model – 172 lbs, XL model – 176 lbs. If your rack can hold the tent, it will also hold occupants inside—never travel with people in the tent.

5. Bolt Positioning: Ensure the bolt head is firmly seated in the recess to prevent rotation.
6. Tighten Nuts: Fully secure both the black quick-release nuts and the anti-slip nuts (with the blue rubber ring) at the screw ends. If there isn’t enough space for both, the anti-slip nuts must be installed.
7. Spacing: After tightening all the nuts, if the clearance between the U-bracket and the T-slot is less than 1/5 inch (5 mm), please contact us for assistance.
8. Routine Check: Regularly inspect and re-tighten all nuts before each trip, especially if the tent has been mounted for an extended period.
The Tent Installation Guide
The Crossbar Installation Guide
VIDEOS
Set up
Upgradable Parts
Picked up my Vision (size L) tent from the warehouse the other day. Super helpful team there. Once I uncrated it (nicely packaged) and inspected the tent, the team forklifted the tent onto my low rise BillieBar rack on my Chevy Colorado TrailBoss. Once loaded, it took me about 30 min to reposition the tent to where I wanted it and lock everything into place.
Given my truck bed is about 5'1" and I had the tent on low rise bars (I wanted to keep it low profile) I knew the tent would run the entire length of the bed. I did not want to run it off the back so I knew the rain fly over the truck cab wouldn't be possible to use (the rods are blocked by my truck cab roof). This is not a huge issue for me. Just wanted to call that out should that be critical for you and if you are rocking a low profile bar set up on a short bed. I still have full access to the window/netting so I'm good :-)
I also wanted to call out two cool things that I do not see listed on the Vision product page of the website. The tent now comes with a diesel heater/ac port. Also TopOak now includes a USB/12volt outlet hub that is prewired and is accessible via the bottom of the tent (see photos below). Very cool!
Overall I'm super excited about the tent, the price and I am ready to hit the trails!
We have spent a couple nights in the tent now and I can confidently say this is an excellent tent. We have had 2 large adults and 2 kids sleep in the tent comfortably. I really wanted an aluminum shell because I didn’t think an abs shell would hold up very well here in Arizona. The heater port has been very nice to have, we used it for its intended purpose one night and ran a power cord through it another. We are very happy with the tent!
The only complaints I have is the weight and if you are a side sleeper the mattress might be a little thin.
Well, I love it because I bought this tent and not one that was $3k more.
I picked it up from the warehouse on Wednesday and I already using it Friday night. The first night was 29 degrees and there was a little draft coming from the door but not bad. I used a portable battery and an indoor space heater and the draft helped keep the air fresh. The second night was in a different location and I thought the 20+ mph sustained winds and the 40+ gusts were going to blow the tent off the truck or at least rip the rainfly off the rods but it survived. This is one well built and rough RTT. I have seen videos of a similar and much more expensive get beat up in poor weather.
One bit of advance once you buy it. Before you take it out, practice opening it and setting it up. I had a hard time with the ladder because I was trying to extent it from the top rows and leave the bottom ones closed. That does not work. You extend the bottom ones and bunch the closed ones on top. It makes sense but not in a pitch dark, remote desert area when all you want to do is sleep.
My only complaint (which is why the rainfly didn't fly in the winds I experienced) is the rods.for the rainfly are thick and take some muscle to bend in place. It is not so bad that you need huge muscles to do it but a trial run before you need to do it is a good idea. I LOVE MY RTT!
One note about the warehouse. If you live relatively close, save the shipping and pick it up. I went alone and they helped unbox it (nice packed in a wooden crate which they disposed of and not me in my trashcan), load it on to my rack, and even helped me get the hardware out of the tent to show me how to attach it. They don't install it for you but we're very helpful.

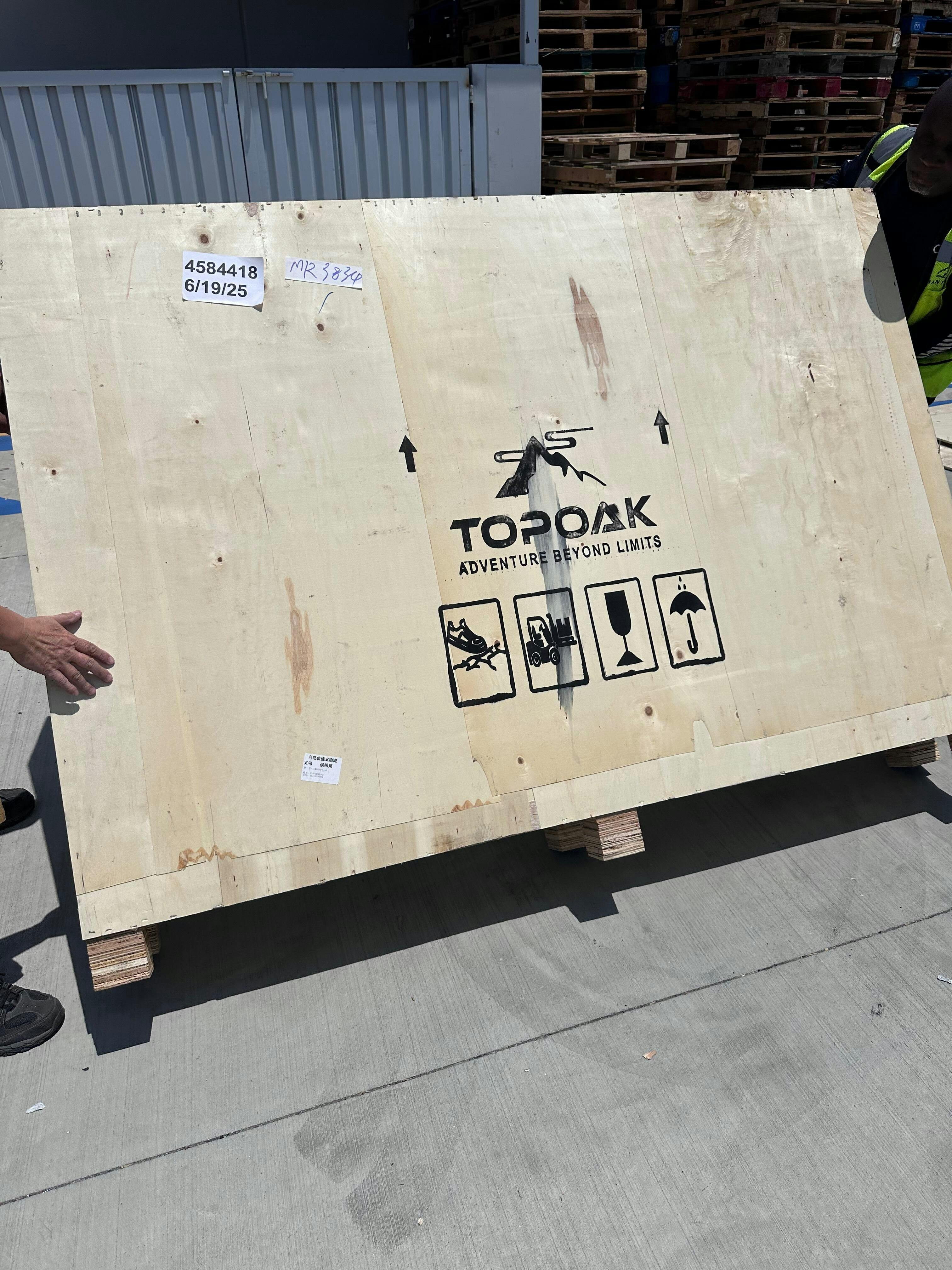

Tent was well packed. The warehouse is huge, they brought it out on a forklift. Unpacked it, they helped put it on my bedrack with the forklift as well. I opened it and really was impressed. I love the quality. I’m happy.! I’m 5’11 and i fit nicely. I have a cali king bed at home and it’s the same size. So for my family of three its more than enough. We can still squeeze another human or dog 👌🏻👌🏻
As long time off-roaders we throughly research our options for RTT, including first hand inspection of competitor’s products, and the clear winner was the Topoak Vision.
Pros:
- Compact size of stowed tent allowed it to be mounted low (just above the truck bed/below top of cab).
- Excellent materials used, all aluminum cover, heavy “rip-stop” nylon tent fabric (much better than what iK…… uses for a RTT that is nearly 3x of the Vision cost) and perfect size for a tall couple.
- Easy setup and takedown
- Reasonable cost ( 1/3 the cost of the iK…. mini but better made IMO).
Cons
- None worth mentioning. The mattress could be better but EVERYONE appears to add a topper to the stock mattress regardless of RTT brand.
- A ladder bag would be nice but an old pillow case would likely be better than anything.
I delayed writing this review until field, testing the unit in very severe desert conditions (including light rains, high winds and very, very cold nights). The Vision RTT work perfectly with no complaints being found.
Would I buy this RTT again? Absolutely
Would I recommend this RTT to others? Absolutely
